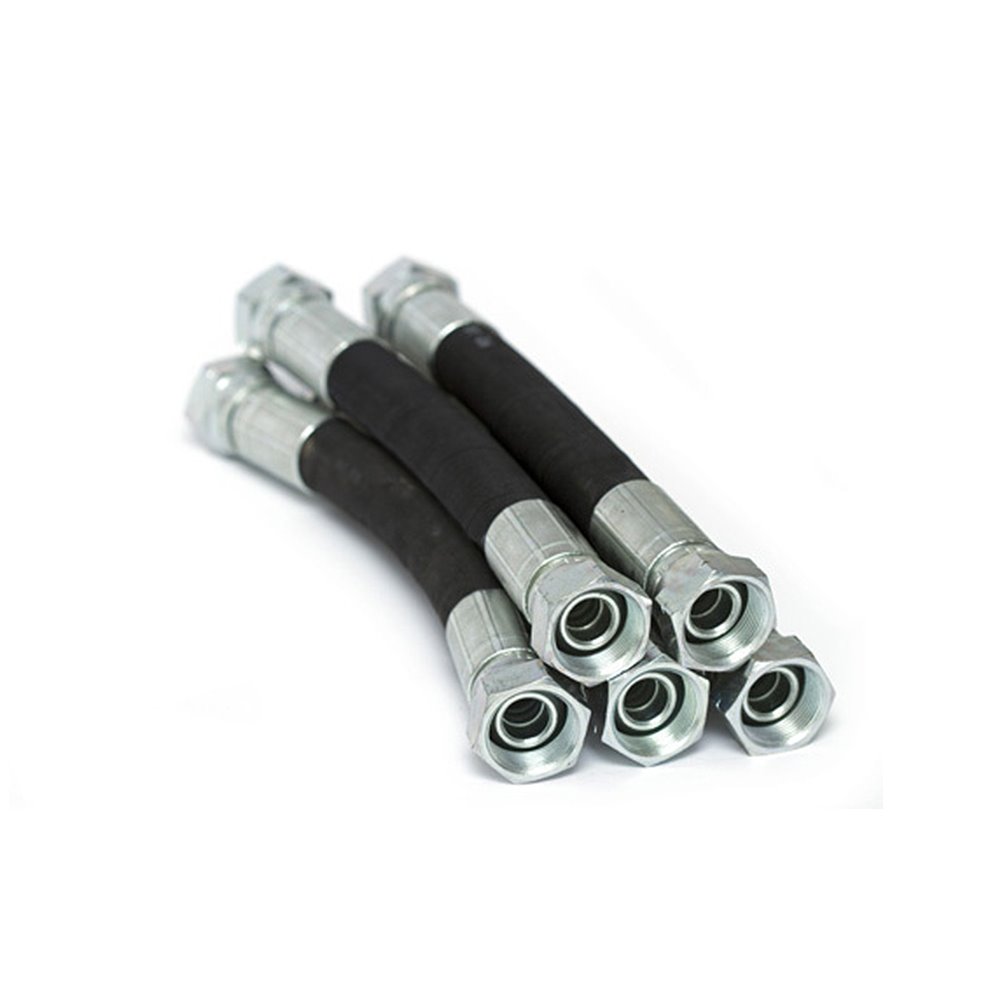

SAE 100 R1AT / EN 853 1SN

Application : Hydraulic System With Petroleum or Water Base Fluid & For Fuel and Lubricating Oils.
Lining : Black Oil Resistant Synthetic Rubber Compound.
Reinforcement : One High Tensile Brass Coated Steel Wire Braid.
Cover : Abrasion, Ozone and Weather Resistant Synthetic Rubber Compound.
Temp. Range : -40°C. To 100°C. (intermittent Use Upto 125°C.)
Impulse : 1,50,000 Cycles
Options : Robust - High Abrasion resistant Cover



SAE100 R2 / AT EN 853 2SN (Wrap & Smooth Finish)

Application : Hydraulic System With Petroleum Or Water Base Fluid & For Fuel And Lubricating Oils.
Lining : Black Oil Resistant Synthetic Rubber Compound.
Reinforcement : Two High Tensile Brass Coated Steel Wire Braids.
Cover : Abrasion, Ozone and Weather Resistant Synthetic Rubber Compound.
Temp. Range : -40°C. To 100°C. (intermittent Use upto 125°C.)
Impulse : 2,00,000 Cycles
Options : Robust - High Abrasion resistant Cover



SAE 100 R3 / EN 854 R3

Application : Hydraulic System With Petroleum Or Water Base Fluid & For Fuel and Lubricating Oils.
Lining : Oil Resistant Synthetic Rubber Compound.
Reinforcement :Two Braids of High Tenacity Textile Yarn.
Cover : Synthetic Rubber Compound widh Abrasion, Ozone and Weather Resistance.
Temp. Range : -40°C. To 100°C.
Impulse : 2,00,000 Cycles
Options : Robust - High Abrasion resistant Cover



SAE 100 R6C & R6R / EN 854 R 6

Application : Low Pressure Hydraulic Oils, Fuel, Lubricating Oil, Anti-freeze Solution and Water.
Lining : Black Oil Resistant Synthetic Rubber Compound.
Reinforcement : One Braid Of Suitable Textile Yarn.
Cover : Synthetic Rubber Compound with Abrasion, Ozone and Weather Resistance.
Temp. Range : -40°C. To 100°Cc. (Intermittent Use Upto 110°C.)
Impulse : Robust - High Abrasion resistant Cover



Steam Hose (Single Wire) Exceeds IS 10655: 1999 (Type- 2 & 3)

Application : Steam at High Temperature.
Lining : Steam & Heat Resistant Rubber Compound.
Reinforcement : One/ Two High Tensile Brass Coated Steel Wire Braid/ Braids.
Cover : Rubber Compound Resistant to Heat, Abrasion & Weather
Temp. Range : Upto 205°C
Special Feature : High Safety Ratio with High Burst Pressure

Applications

• Aerospace
• Agriculture
• Atomic Plants
• Automotobiles
• Cement
• Chemical Plants
• Construction
• Defense
• Engineering
• Industrial Machinery
• Iron & Steel
• Mining
• Oil & Gas
• Power Plants
• Railways & Metros
• Shipping & Marine
• Textiles

Download Brochure

• Synthetic Rubber Compound-abrasion, Ozone Oil and Resistance.
• Two High Tensile Brass Coated Steel Wire Braid/braids.
• Temp.range-20°c to 95°c.



Applications

• Automotobiles

Air / Water Hose

Application : Low Pressure Application For Compression and Delivery.
Lining : Modified Natural Rubber Compound
Reinforcement : One I Two High Tencity Synthetic Yarn Braids.
Cover : Modified Natural Rubber Compound with Good Ageing and Abrasion Properties
Standard : Exceeds IS 444 & 446 (type - I)



Pneumatic Tool Hose

Application : For use in Compressor in Industry, Construction, Shipyard and Wagon in tough Operating Conditions.
Lining : Modified Natural Rubber Compound.
Reinforcement : One I Two High Tencity Synthetic Yarn Braids
Cover : Modified Natural Rubber Compound Resistant To Abrasion and Ageing.
Standard: Exceeds IS 446 (type - II)



Rock Drill Hose

Application : Used for Extra Heavy Duty, High Pressure Pneumatic Application in Industry, Construction, Mines, Drilling and Quarries in Most Severe Service Conditions.
Lining : Heat and Oil Mist Resistant Rubber Compound.
Reinforcement : One High Tensile Brass Coated Steel Wire Braid.
Cover : Abrasion & Oil Resistant Synthetic Rubber Compound.
Temp. Range : -34°C To + 100°C.
Standard : Exceeds IS 2446 (Type - Ill)



Car Wash Hose (Single Wire)

Application : For Use In Service Station for Water Jetting.
Lining : Natural and Synthetic Rubber Blend.
Reinforcement :
Rcw 1 : One High Tensile Brass Coated Steel Wire Braid
Rcw 2 : Two High Tensile Brass Coated Steel Wire Braid
Cover : Synthetic Rubber Compound Resistant To Ozone and Oil with Excellent Abrasion and Ageing Properties.
Special : Extra High Burst Pressure For Safety
Standard : Super Exceeds IS 7654 ( Type-II ) Specification



Carbon Free Hose

Application : For use in induction furnace as cable coolant and non- conductive application.
Lining : White Synthetic Rubber Compound.
Reinforcement : One I Two High Tencity Heat Resistant Synthetic Yarn Braid I Braids.
Cover : Green Rubber Compound with Abrasion, Weather, Heat Resistant and Ageing Properties.



Sand / Shot Blast Hose

Application : Used for Cleaning / Blasting in Casting Metal, Stone, Concrete Surface With Wet / dry Sand or Other Abrasive Material.
Lining : Extra Thick Seamless Natural Rubber Lining with High Abrasion Resistance & Resilience.
Reinforcement : Suitably Braided With Synthetic Yarn and Two Tin Coated Copper Wire Laid Spirally In Opposite Direction To Dissipate Static Charge.
Cover : Highly Abrasion Resistant Modified Natural Rubber Compound With Excellent Ageing Properties.
Standard : Exceeds IS 5894 ( Type-II )



Applications

• Aerospace
• Agriculture
• Atomic Plants
• Automotobiles
• Cement
• Chemical Plants
• Construction
• Defense
• Engineering
• Industrial Machinery
• Iron & Steel
• Mining
• Oil & Gas
• Power Plants
• Railways & Metros
• Shipping & Marine
• Textiles

Download Brochure

It is the ideal hose for spraying Pesticide in orchard and farm.
Mainly used for spraying agricultural chemicals in agriculture and high pressure water, air or other liquids in high Pressure washing machine, construction machinery and industry production.
Also for automatic machinery and pneumatic tools, nail guns etc.

Tube : White

Cover : Yellow Flexible PVC, Surfaces cover is corrugated.

Reinforcement : With Double High Tenacity synthetic Fiber

Characteristics : It is light, durable, flexible, anti erosion, abrasion, weather oil, acid, alkali explosion & high pressure resistant, anti-bending and nice bright surface.

Applications

• Aerospace
• Agriculture
• Automotobiles
• Engineering
• Industrial Machinery
• Railways & Metros

Download Brochure

Characteristics

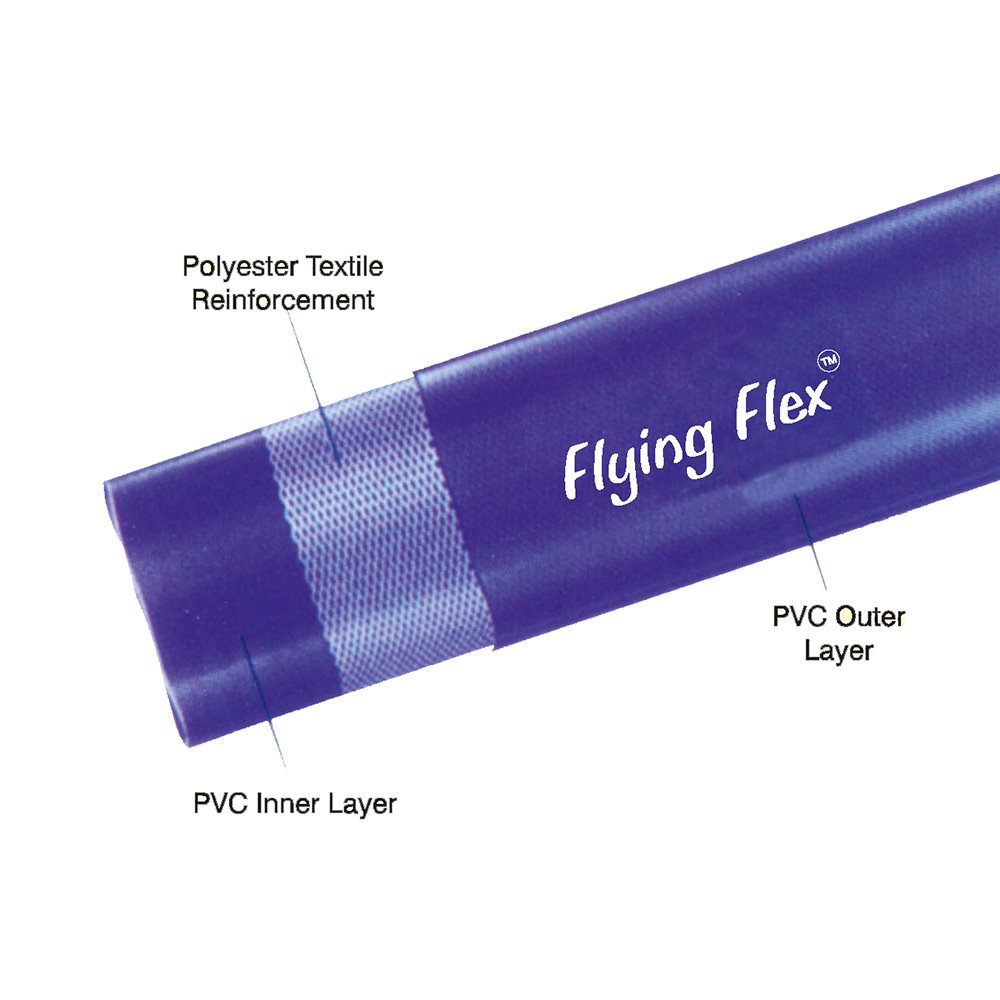

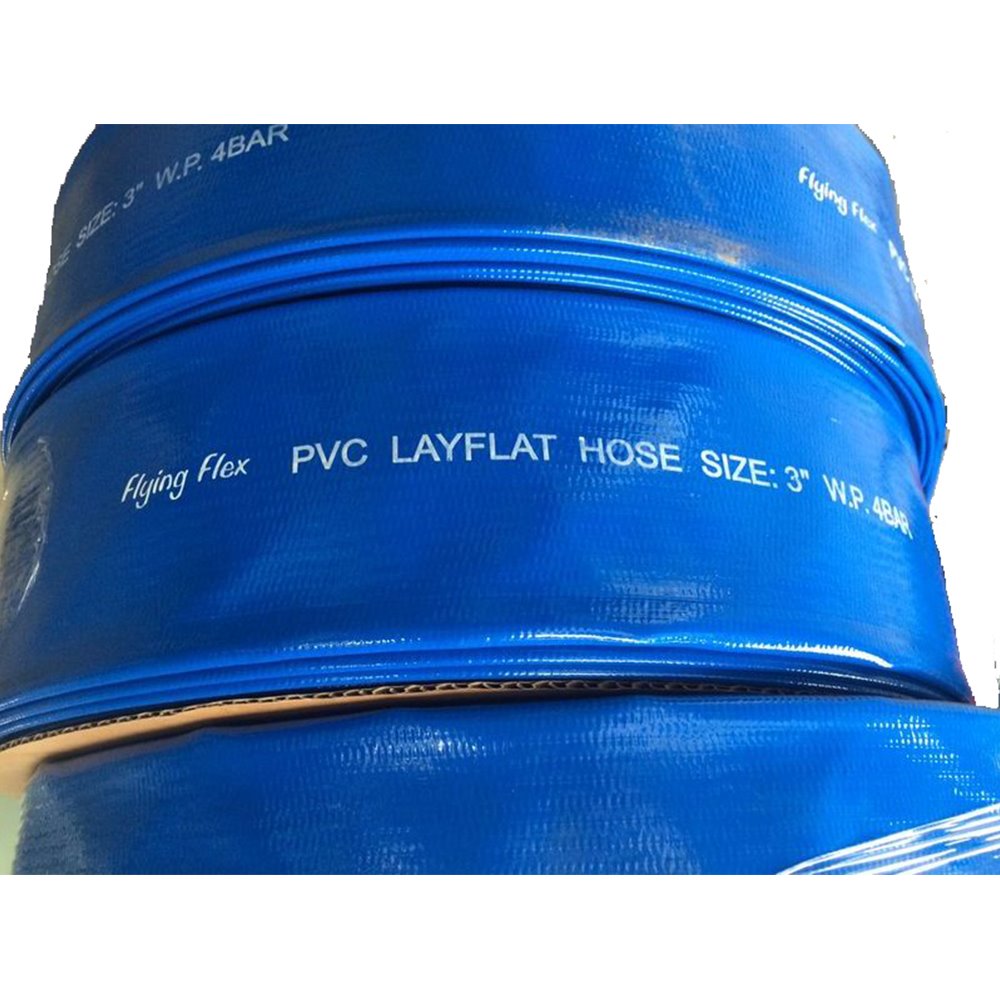

• Flying Flex Flat Hose is a superior replacement to conventional Cotton/ Kisan / Lapeta hose pipe.
• Qualified PVC synthetic material.
• No Limitation for length.
• Highly flexible, flat roll and easy to take, handle and store
• Good elasticity and good cold and hot resistance.
• Attractive appearance, smooth, bright color, most ideal liquid-transferred high-pressure hose.
• Resistant to abrasion and corrosion.

Applications

• Agriculture
• Construction
• Mining
• Power Plants
• Railways & Metros
• Sewage Treatment

Download Brochure

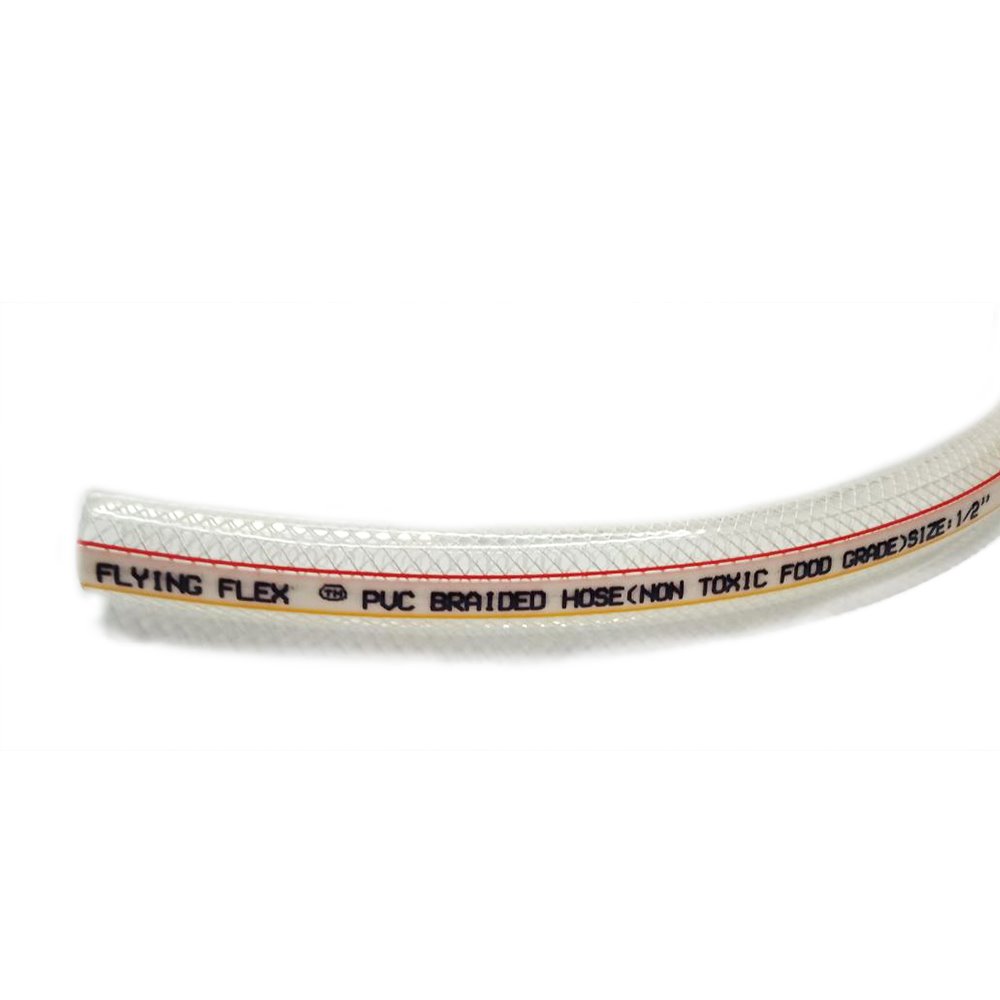

• Can be used in low pressure conditions for fittings of sanitary foodstuff industry, machines, civil engineering and aquatic animal's equipment.
• Can be used for conveying water, oil, gas under normal working condition in the factories, farm, ship and family.

Features

• Light, Flexible and transparent.
• Without odour.
• Resistant to high pressure and erosion.

Applications

• Atomic Plants
• Automotobiles
• Construction
• Laboratories
• Oil & Gas

Download Brochure

Introduction

We are one of the leading manufacturer of "Flying Flex" brand Plastics reinforced hoses since many years. Flying Flex is the real hose for suction and delivery application. It is strong, flexible, durable and easy to handle. It is a smooth bore reinforced PVC Hose which ensures optimum performance and minimum flow resistance to the product it conveys. "Flying Flex" flexible PVC Hose with rigid reinforcement for suction and delivery is a result of many years of experience combined with advance technology, perfect quality control before and through out the production gives the ultimate users maximum quality assurance.


Construction And Application

"Flying Flex" flexible PVC Hose is produced under rigorously controlled conditions. A proper and adequate reinforcement is secured by proper placement of hard spirals of rigid PVC in the soft wall which gives strength to the wall as well as required flexibility to the entire hose length. This also provides outstanding crush resistance and working pressure ratings. Flying Flex Medium Duty flexible PVC Green Hose has countless applications in Agriculture and Industry. It is ideal for suction and delivery of water for Irrigation purpose in Agriculture with electric mono block and oil engines. Also suitable for suction and delivery of saline water, light acids, Alkalies and other chemicals and for conveying of granules or fine particles of raw materials.

Advantages

• Lightweight : Often only 1/4 that of rubber Hose which makes it easy to carry and install
• Flexible : The flexibility of hose is retained for many years. It can be bent as desired. No kinking, bulging or bursting even in the most severe working conditions.
• Resistance : It shows strong resistance to high pressure and most of the chemicals, acids and alkalizes. Ideal for high pressure suction & delivery of water.
• Weather Proof : Resistant to sun, ozone and weather.
• Easy Fitting : Easily installed, even to non-standard couplings.
• Smooth Bore : Allows fast flow.

Applications

• Agriculture
• Cement
• Chemical Plants
• Construction
• Defense
• Mining
• Oil & Gas
• Power Plants
• Railways & Metros
• Sewage Treatment
• Shipping & Marine

Download Brochure

Duct hoses are highly specialized in performance. They are widely used for pneumatic transportation, dust collecting equipment, washing machines and air-conditioning equipment’s in buildings. Also suitable for carding machines and draw frames in Textile machinery.

This light weight, flexible, non-metallic hose has a specially compounded rigid PVC reinforcement which is helically wound and inseparably fused to the soft inner walls. By its unique construction, our ducting results in a thin, very smooth wall, being almost completely protected from any possible crushing.

Recommended maximum temperature : 60 / 70" C

Applications

• Aerospace
• Atomic Plants
• Automotobiles
• Engineering
• HVAC
• Industrial Machinery
• Textiles

Download Brochure

Characteristic

Flying Flex PVC car washing hose is a conventional product, with double braided with yarn. Its special material makes it the only hose, which can fully withstand the unavoidable oil/ grease contamination in garages. It is very light weight and much economical compared with rubber / PU hose.

Download Brochure

We are counted amongst the top most leading and reputed Sellers of Thermoplastic ISI Marked Hose. Our offered range ensures best functionality even under extreme weather conditions. Manufacturing unit is using excellent quality materials which are procured from trusted vendors of the industry. Our Thermoplastic ISI Marked Hose is available in varied customizations for multiple purposes. The key features of our offered range are sturdy designs, easy installation and low maintenance.

Technical Specifications

• Material : Thermoplastic Hybrid Compound.
• Reinforcement : High Quality Synthetic Braided Yarn
• Bend Radius : can work at a radius of 5 times to the normal bore size, as specified in IS:12656:1989
• Workability : can work at high pressure as lab tested on calibrated machines
• Working Temperature : It can work upto 65°C atmospheric temperature without kinking, melting or any sign of collapse

Applications

• Chemical Plants
• Defense
• Fire extinguishing
• Industrial Machinery
• Mining
• Railways & Metros
• Shipping & Marine

Features

• Working Temp : - 40° C to + 90°C
• Light Weight
• Highly Flexible
• Easy to Handle

Applications

• Aerospace
• Atomic Plants
• Automotobiles
• Engineering
• HVAC
• Industrial Machinery
• Textiles

Download Brochure

Features

• Working Temp : - 20° C to + 80°C
• Light duty dust extraction and air movement
• Flexible
• Easy to handle

Applications

• Aerospace
• Atomic Plants
• Automotobiles
• Engineering
• HVAC
• Industrial Machinery
• Textiles

Download Brochure

Features

• Working Temp : -70° C to + 260°C
• Light Weight
• Flexible

Applications

• Aerospace
• Atomic Plants
• Automotobiles
• Engineering
• HVAC
• Industrial Machinery
• Textiles

Download Brochure

Features

• Working Temp : - 30° C + 300° C
• Light Weight
• Flexible

Applications

• Aerospace
• Atomic Plants
• Automotobiles
• Engineering
• HVAC
• Industrial Machinery
• Textiles

Download Brochure

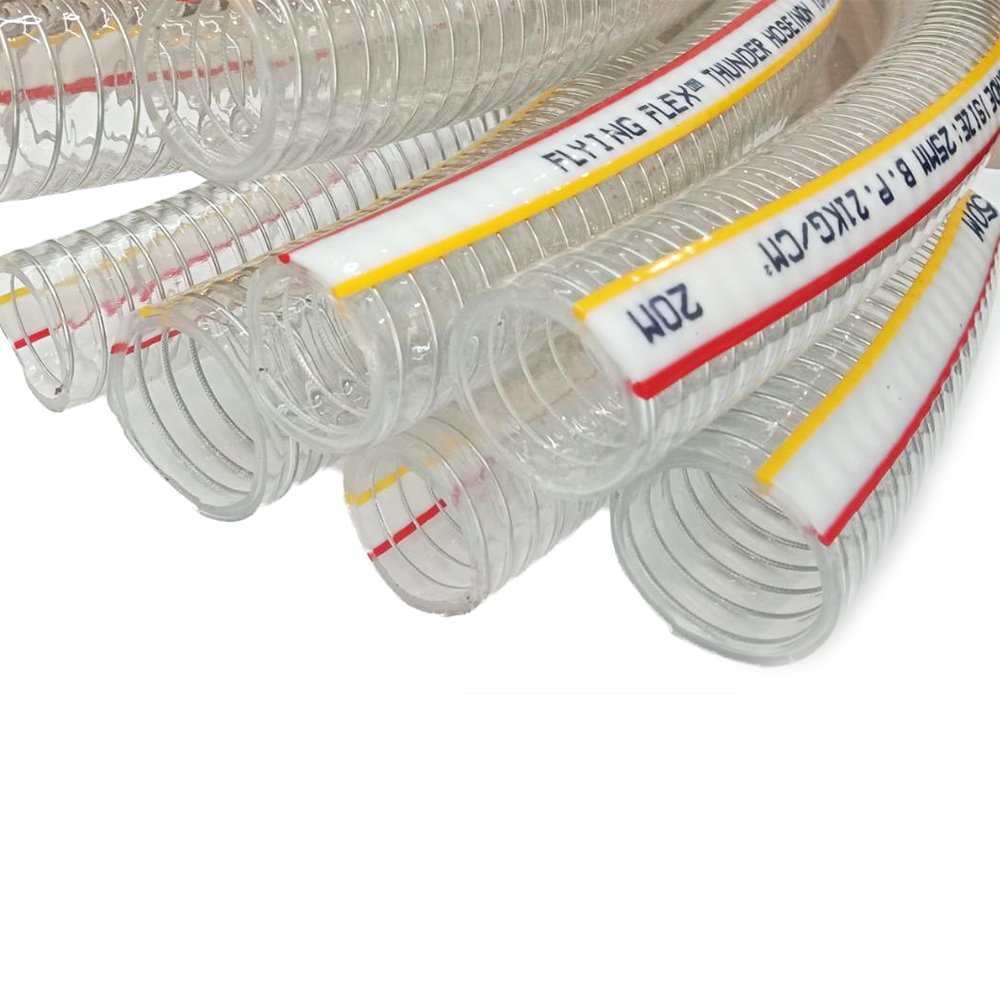

• Strong, resistant to corrosion, abrasion and weather i.e. good adaptability to hard weather condition and minus pressure.
• Excellent kink and crush resistance.
• Transparent for easy flow monitoring with small bending radius.
• Glass-like clarity with mirror-smooth surfaces.
• Provide outstanding visual flow characteristics.
• With colorful symbol lines on the structure of the hose, it can be more beautiful.
• Light in weight and flexible with good cold and heat resistance.

Applications

• Aerospace
• Agriculture
• Atomic Plants
• Automotobiles
• Chemical Plants
• Food Processing
• Laboratories
• Pharmaceutical
• Shipping & Marine
• Textiles

Download Brochure

• Light weight and flexible.
• Strong enough to with stand high pressure.
• Abrasion Resistant.
• Rodent Proof.
• Crush and Kink Resistant.
• Resistant to Chemicals: Acids and Alkalis

Applications

• Aerospace
• Agriculture
• Atomic Plants
• Automotobiles
• Cement
• Chemical Plants
• Construction
• Defense
• Engineering
• Food Processing
• Industrial Machinery
• Iron & Steel
• Laboratories
• Mining
• Pharmaceutical
• Power Plants
• Railways & Metros
• Shipping & Marine
• Textiles

Download Brochure

Working Temp : - 20° C to + 70°C
Application : As Vacuum cleaner hose ideally for swimming pool.

Download Brochure

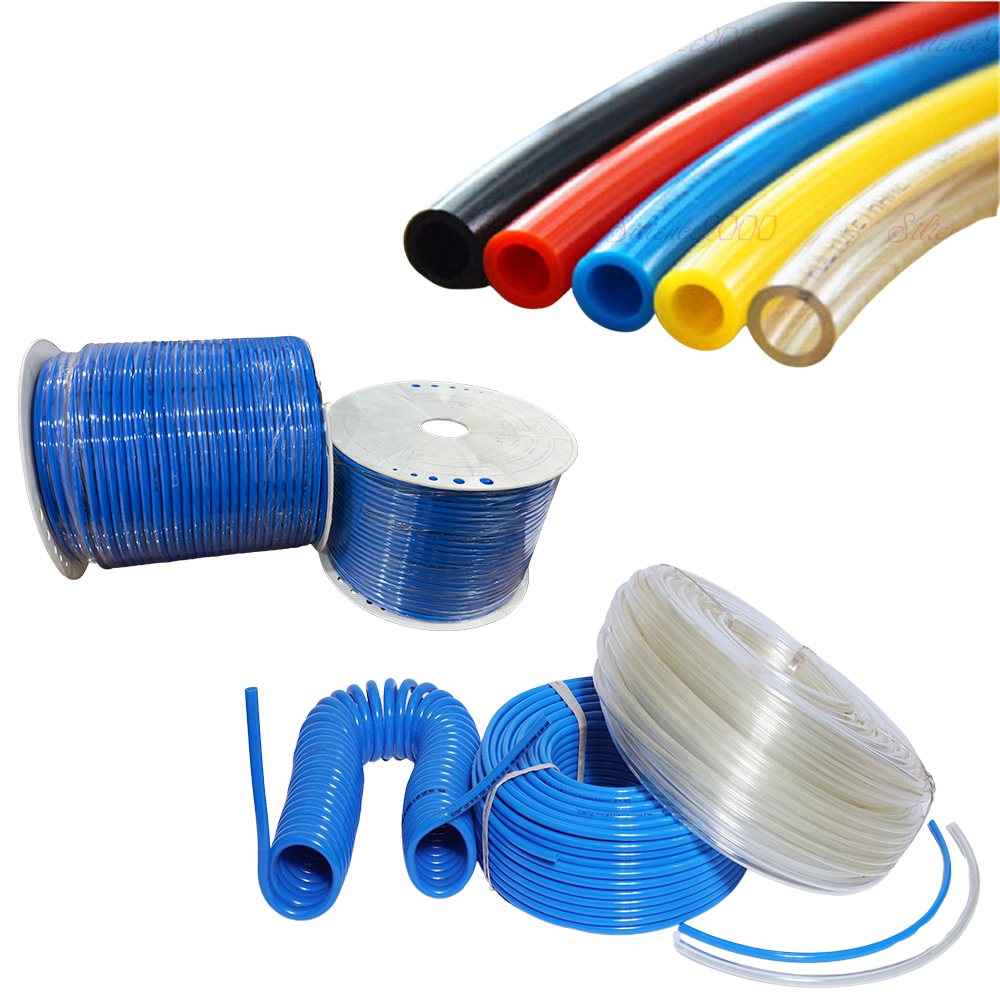

Features of PU Bare Hose

• Flexibility of Polyurethane tubing is still good under very low temperature, good elasticity.
• Pretty high intensity, abrasion resistant and long service life, Small bending radius.
• Light weight, high grade of transparency, anti-corrosion on partly chemical material.
• Inner Wall of Polyurethane tube is very smooth for transport.
• PU tube / Pneumatic tubing are Widely used in Pneumatic automation system, Air tools.



Features of PU Coil

• Light weight
• Space and time saving
• Easy to use
• Recoils back automatically after use.

Applications

• Atomic Plants
• Automotobiles
• Chemical Plants
• Defense
• Engineering
• Food Processing
• Industrial Machinery
• Mining
• Pharmaceutical
• Railways & Metros
• Shipping & Marine
• Textiles

Download Brochure

We are counted amongst the top most leading and reputed Sellers of Thermoplastic ISI Marked Hose. Our offered range ensures best functionality even under extreme weather conditions. Manufacturing unit is using excellent quality materials which are procured from trusted vendors of the industry. Our Thermoplastic ISI Marked Hose is available in varied customizations for multiple purposes. The key features of our offered range are sturdy designs, easy installation and low maintenance.



Technical Specification

Material : Thermoplastic Hybrid Compound.

Reinforcement : High Quality Synthetic Braided Yarn

Bend Radius : can work at a radius of 5 times to the normal bore size, as specified in IS:12656:1989

Workability : can work at high pressure as lab tested on calibrated machines

Working Temperature : It can work upto 65°C atmospheric temperature without kinking, melting or any sign of collapse

Applications

• Fire extinguishing

Tube : Transparent PVC
Reinforcement : High Tensile synthetic textile
Cover : Abrasion, Ozone and weather resistant transparent PVC allowing easy inspection during service.

Features

• Flexible, Transparent and durable.
• Non toxic, without odor, anti erosive.
• Adaptable to high pressure condition.

Applications

• Aerospace
• Agriculture
• Atomic Plants
• Automotobiles
• Cement
• Chemical Plants
• Construction
• Defense
• Engineering
• Food Processing
• Industrial Machinery
• Iron & Steel
• Laboratories
• Mining
• Pharmaceutical
• Power Plants
• Railways & Metros
• Shipping & Marine
• Textiles

Download Brochure

Features

• Working Temp : - 70° C to + 150°C
• Light Weight
• Highly Flexible

Applications

• Aerospace
• Atomic Plants
• Automotobiles
• Engineering
• HVAC
• Industrial Machinery
• Textiles

Download Brochure

Reinforcement : One braid of stable textile yarn.
Bursting pressure : 54 bar

Applications

• Fire extinguishing

This is a high performance hose of great resistance to pressure abrasion and rough handling. It is designed for heavy duty applications in construction and engineering, general industrial services, cement conveying, paper mills, chemical industry, coal mines, shipping, see age disposal etc.

Applications

• Agriculture
• Cement
• Chemical Plants
• Construction
• Defense
• Mining
• Oil & Gas
• Power Plants
• Railways & Metros
• Sewage Treatment
• Shipping & Marine

Download Brochure

Tube : PVC Compound

Cover : Abrasion, Ozone and weather resistant Green transparent PVC.

Features

• Flexible,Transparent and durable.
• Non toxic, without odour, anti erosive.
• Adaptable to high pressure condition.

Applications

• Agriculture
• Construction
• Mining
• Railways & Metros

Download Brochure

The outer cover is highly abrasive resistant and the hose is highly flexibile. The smooth inner tube is free from sulphur to avoid clogging of welding torch / tools.

Applications

• Aerospace
• Atomic Plants
• Construction
• Defense
• Engineering
• Industrial Machinery
• Iron & Steel
• Mining
• Power Plants
• Railways & Metros
• Shipping & Marine
• Traffic Signals & Hoardings

Flying Flex Oil Hoses are specially flexible. This hose is ideal for transportation of mineral oils, light oils, transformer oils, kerosene, liquid petroleum products etc.

Applications

• Agriculture
• Cement
• Chemical Plants
• Construction
• Defense
• Mining
• Oil & Gas
• Power Plants
• Railways & Metros
• Sewage Treatment
• Shipping & Marine

Download Brochure

Our Non-Toxic hose is made of special Non-Toxic PVC Compound which is safely recommended for conveying food product, beverages, arreated drinks, powdered cereals and their by products etc.

Applications

• Agriculture
• Chemical Plants
• Food Processing
• Power Plants
• Railways & Metros
• Shipping & Marine

Download Brochure
