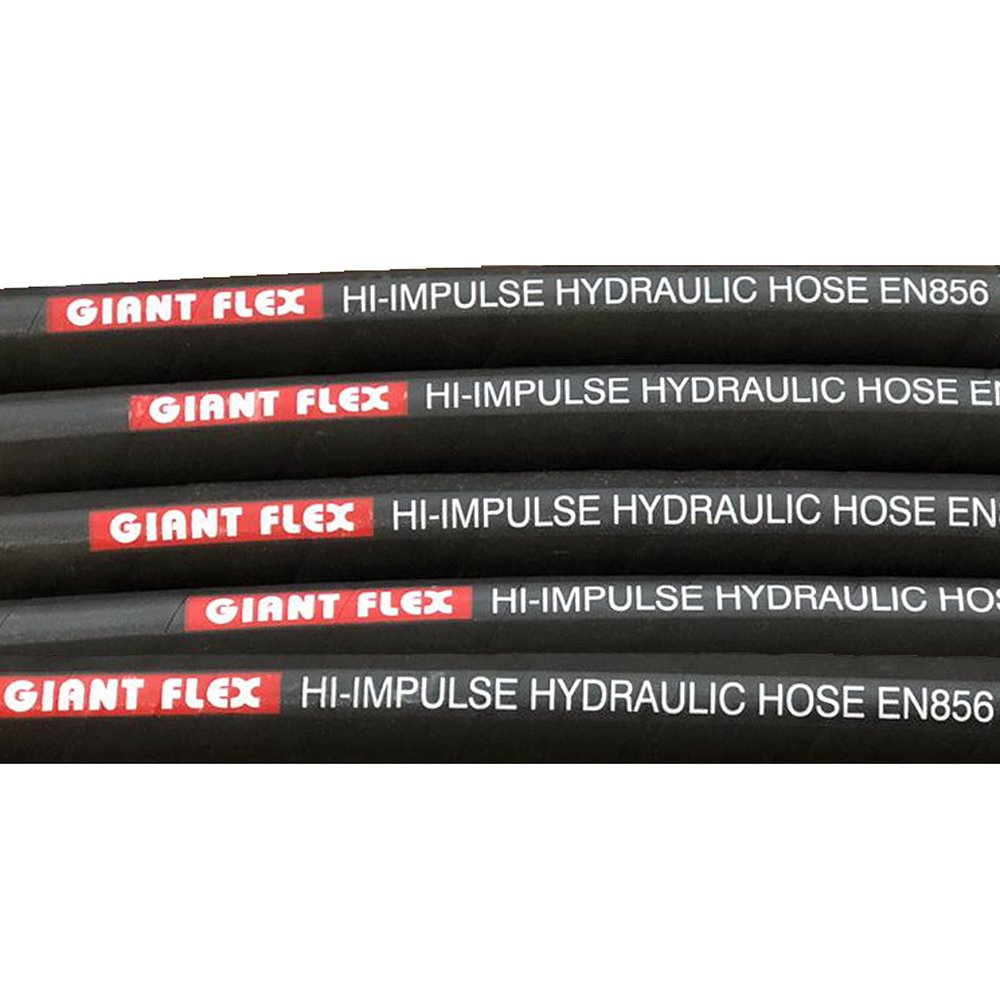

GIANT FLEX Spiral Hose EN 856 4SH

Application : Extremely high hydraulic applications.
The hose is suitable for petroleum-based hydraulic fluids, water-based glycol and lubricants
Lining : Black, Oil resistant synthetic rubber
Reinforcement : Four alternating layers of spiraled, high tensile steel wires
Cover : Anti-abrasive, synthetic rubber resistant to oils, fuel and atmospheric conditions
Standard : EN 856 4SH (Impulse cycle tested at 4,00,000 cycles)
Temp. Range : -40º C to +120º C



GIANT FLEX SAE 100 R1 AT / EN 853 1SN (Wrap & Smooth finish)

Application : Hydraulic System With Petroleum or Water Base Fluid & For Fuel and Lubricating Oils.
Lining : Black Oil Resistant Synthetic Rubber Compound.
Reinforcement : One High Tensile Brass Coated Steel Wire Braid.
Cover : Abrasion, Ozone and Weather Resistant Synthetic Rubber Compound.
Temp. Range : -40°C. To 100°C. (intermittent Use Upto 125°C.)
Impulse : 1,50,000 Cycles



GIANT FLEX SAE 100 R2 / AT EN 853 2SN (Wrap & Smooth Finish)

Available in standard lengths 50/100mtr
Application : Hydraulic System With Petroleum Or Water Base Fluid & For Fuel And Lubricating Oils.
Lining : Black Oil Resistant Synthetic Rubber Compound.
Reinforcement : Two High Tensile Brass Coated Steel Wire Braids.
Cover : Abrasion, Ozone and Weather Resistant Synthetic Rubber Compound.
Temp. Range : -40°C. To 100°C. (intermittent Use upto 125°C.)
Impulse : 2,00,000 Cycles
Options : Robust - High Abrasion resistant Cover

Applications

• Aerospace
• Agriculture
• Atomic Plants
• Automotobiles
• Cement
• Chemical Plants
• Construction
• Defense
• Engineering
• Industrial Machinery
• Iron & Steel
• Mining
• Oil & Gas
• Power Plants
• Railways & Metros
• Shipping & Marine
• Textiles

Download Brochure

Applications : For delivery of hot compressed air in ground drilling, quarries, construction and general industry.
Reinforcement :  Two braids of high-tensile steel wires.
Tube : -Nitrile Butadiene Rubber, smooth, antistatic, oil resistant.
Cover : Nitrile Rubber, Blue smooth, antistatic, abrasion resistant, oil and weather resistant; four side pin-pricked.
Lining : Blue oil & weather resistant rubber compound.
Temperature range : -40º C to +150º C

	Normal Bore		Minimum Outer cover Diameter	Working Pressure		Bursting Pressure		Minimum Bend Radius
DN	inch	mm	mm	PSI	BAR	PSI	BAR	inch	mm
32	1.1/4"	31.8	46.9	1810	125	7240	500	16	420
38	1.1/2"	38.1	54.2	1300	90	5200	360	19	500
50	2"	50.8	66.9	1160	80	4640	320	24	630
