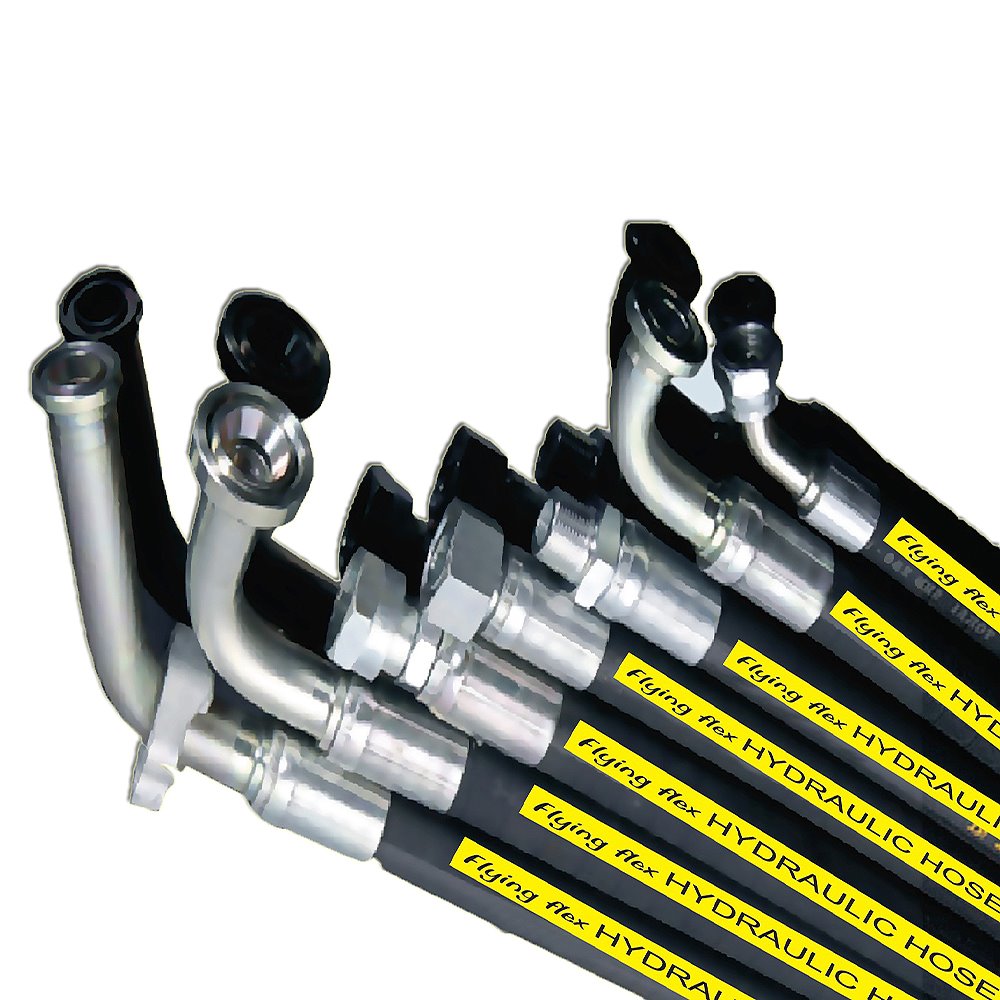

SAE 100 R1AT / EN 853 1SN

Application : Hydraulic System With Petroleum or Water Base Fluid & For Fuel and Lubricating Oils.
Lining : Black Oil Resistant Synthetic Rubber Compound.
Reinforcement : One High Tensile Brass Coated Steel Wire Braid.
Cover : Abrasion, Ozone and Weather Resistant Synthetic Rubber Compound.
Temp. Range : -40°C. To 100°C. (intermittent Use Upto 125°C.)
Impulse : 1,50,000 Cycles
Options : Robust - High Abrasion resistant Cover



SAE100 R2 / AT EN 853 2SN (Wrap & Smooth Finish)

Application : Hydraulic System With Petroleum Or Water Base Fluid & For Fuel And Lubricating Oils.
Lining : Black Oil Resistant Synthetic Rubber Compound.
Reinforcement : Two High Tensile Brass Coated Steel Wire Braids.
Cover : Abrasion, Ozone and Weather Resistant Synthetic Rubber Compound.
Temp. Range : -40°C. To 100°C. (intermittent Use upto 125°C.)
Impulse : 2,00,000 Cycles
Options : Robust - High Abrasion resistant Cover



SAE 100 R3 / EN 854 R3

Application : Hydraulic System With Petroleum Or Water Base Fluid & For Fuel and Lubricating Oils.
Lining : Oil Resistant Synthetic Rubber Compound.
Reinforcement :Two Braids of High Tenacity Textile Yarn.
Cover : Synthetic Rubber Compound widh Abrasion, Ozone and Weather Resistance.
Temp. Range : -40°C. To 100°C.
Impulse : 2,00,000 Cycles
Options : Robust - High Abrasion resistant Cover



SAE 100 R6C & R6R / EN 854 R 6

Application : Low Pressure Hydraulic Oils, Fuel, Lubricating Oil, Anti-freeze Solution and Water.
Lining : Black Oil Resistant Synthetic Rubber Compound.
Reinforcement : One Braid Of Suitable Textile Yarn.
Cover : Synthetic Rubber Compound with Abrasion, Ozone and Weather Resistance.
Temp. Range : -40°C. To 100°Cc. (Intermittent Use Upto 110°C.)
Impulse : Robust - High Abrasion resistant Cover



Steam Hose (Single Wire) Exceeds IS 10655: 1999 (Type- 2 & 3)

Application : Steam at High Temperature.
Lining : Steam & Heat Resistant Rubber Compound.
Reinforcement : One/ Two High Tensile Brass Coated Steel Wire Braid/ Braids.
Cover : Rubber Compound Resistant to Heat, Abrasion & Weather
Temp. Range : Upto 205°C
Special Feature : High Safety Ratio with High Burst Pressure

Applications

• Aerospace
• Agriculture
• Atomic Plants
• Automotobiles
• Cement
• Chemical Plants
• Construction
• Defense
• Engineering
• Industrial Machinery
• Iron & Steel
• Mining
• Oil & Gas
• Power Plants
• Railways & Metros
• Shipping & Marine
• Textiles

Download Brochure

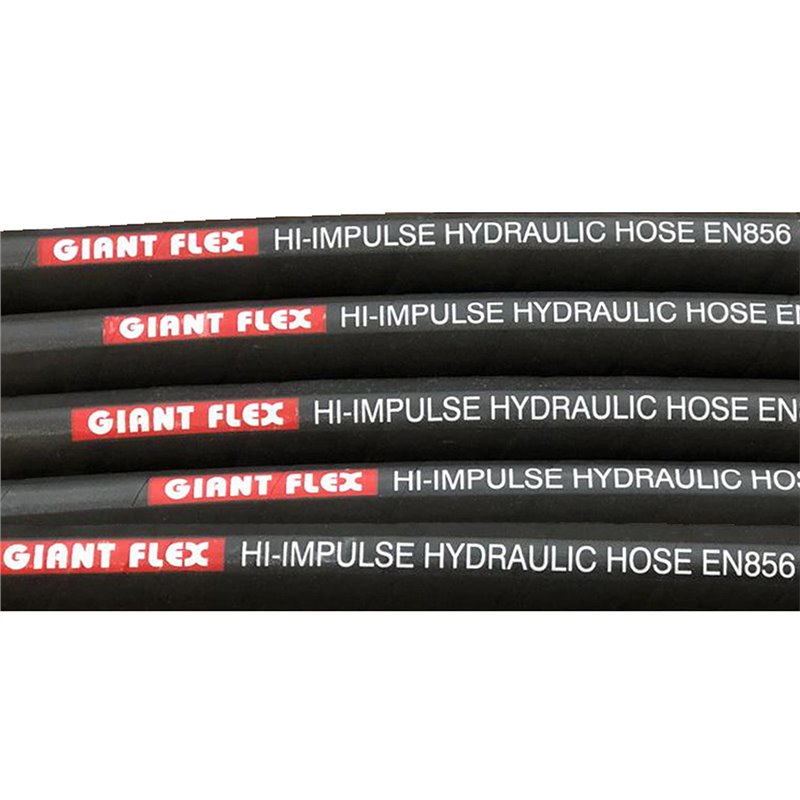

GIANT FLEX Spiral Hose EN 856 4SH

Application : Extremely high hydraulic applications.
The hose is suitable for petroleum-based hydraulic fluids, water-based glycol and lubricants
Lining : Black, Oil resistant synthetic rubber
Reinforcement : Four alternating layers of spiraled, high tensile steel wires
Cover : Anti-abrasive, synthetic rubber resistant to oils, fuel and atmospheric conditions
Standard : EN 856 4SH (Impulse cycle tested at 4,00,000 cycles)
Temp. Range : -40º C to +120º C



GIANT FLEX SAE 100 R1 AT / EN 853 1SN (Wrap & Smooth finish)

Application : Hydraulic System With Petroleum or Water Base Fluid & For Fuel and Lubricating Oils.
Lining : Black Oil Resistant Synthetic Rubber Compound.
Reinforcement : One High Tensile Brass Coated Steel Wire Braid.
Cover : Abrasion, Ozone and Weather Resistant Synthetic Rubber Compound.
Temp. Range : -40°C. To 100°C. (intermittent Use Upto 125°C.)
Impulse : 1,50,000 Cycles



GIANT FLEX SAE 100 R2 / AT EN 853 2SN (Wrap & Smooth Finish)

Available in standard lengths 50/100mtr
Application : Hydraulic System With Petroleum Or Water Base Fluid & For Fuel And Lubricating Oils.
Lining : Black Oil Resistant Synthetic Rubber Compound.
Reinforcement : Two High Tensile Brass Coated Steel Wire Braids.
Cover : Abrasion, Ozone and Weather Resistant Synthetic Rubber Compound.
Temp. Range : -40°C. To 100°C. (intermittent Use upto 125°C.)
Impulse : 2,00,000 Cycles
Options : Robust - High Abrasion resistant Cover



SAE 100 EN 854 R 6

Application : Low Pressure Hydraulic Oils, Fuel, Lubricating Oil, Anti-freeze Solution and Water.
Lining : Black Oil Resistant Synthetic Rubber Compound.
Reinforcement : One Braid Of Suitable Textile Yarn.
Cover : Synthetic Rubber Compound with Abrasion, Ozone and Weather Resistance.
Temp. Range : -40°C. To 100°Cc. (Intermittent Use Upto 110°C.)
Impulse : Robust - High Abrasion resistant Cover

Applications

• Aerospace
• Agriculture
• Atomic Plants
• Automotobiles
• Cement
• Chemical Plants
• Construction
• Defense
• Engineering
• Industrial Machinery
• Iron & Steel
• Mining
• Oil & Gas
• Power Plants
• Railways & Metros
• Shipping & Marine
• Textiles

Download Brochure

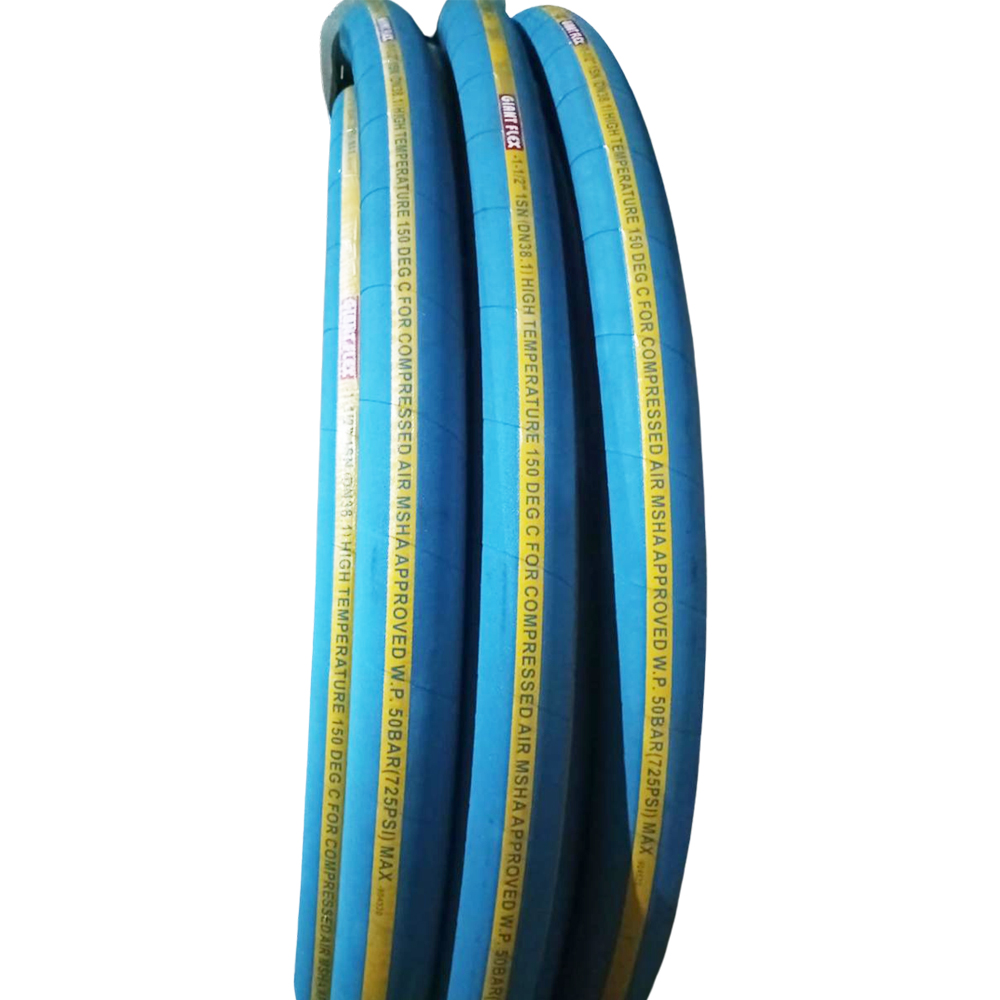

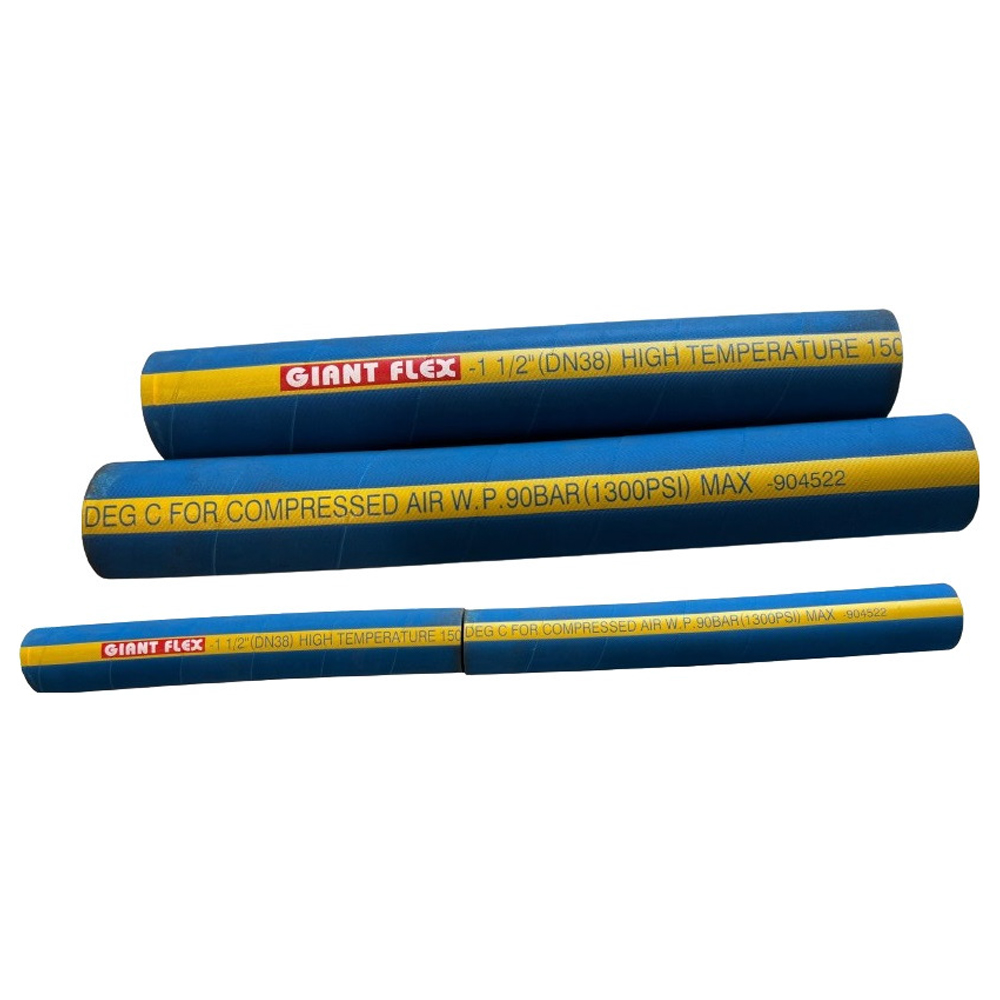

Applications : For delivery of hot compressed air in ground drilling, quarries, construction and general industry.
Reinforcement :  Two braids of high-tensile steel wires.
Tube : -Nitrile Butadiene Rubber, smooth, antistatic, oil resistant.
Cover : Nitrile Rubber, Blue smooth, antistatic, abrasion resistant, oil and weather resistant; four side pin-pricked.
Lining : Blue oil & weather resistant rubber compound.
Temperature range : -40º C to +150º C

Download Brochure

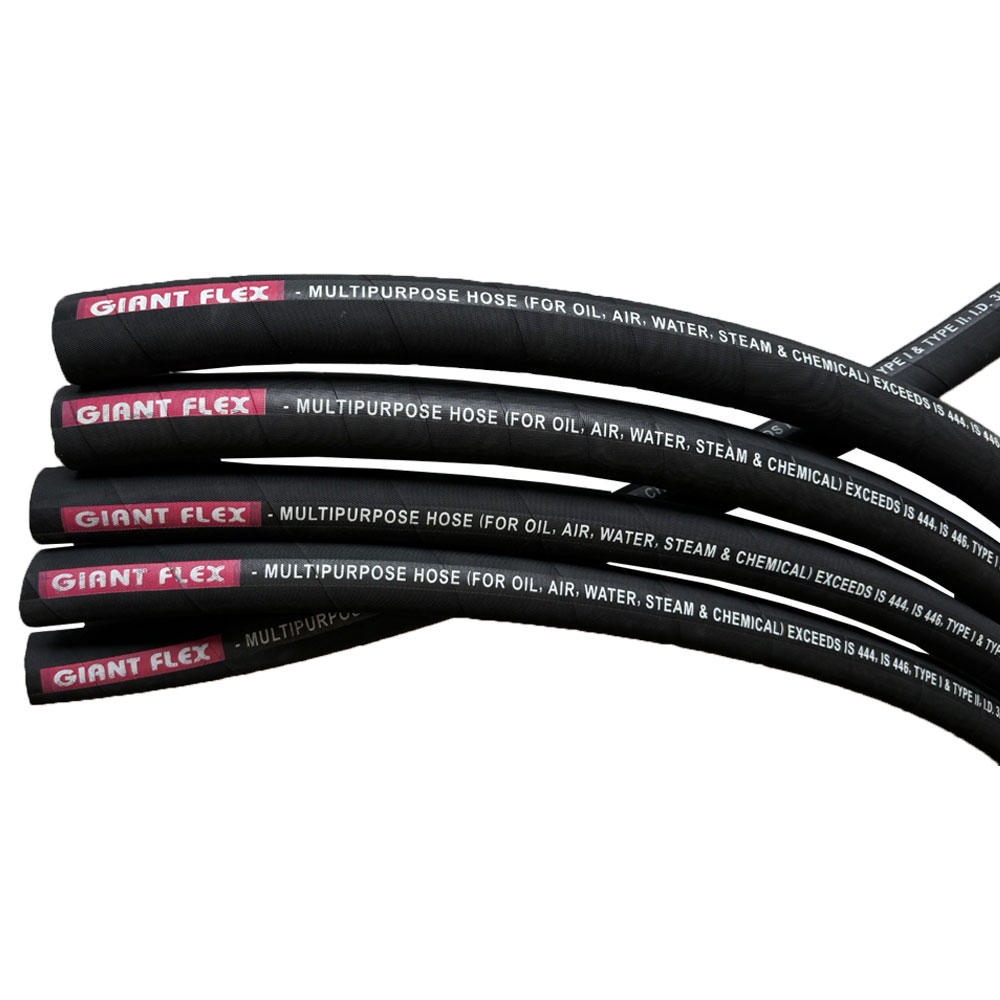

Application : For Oil/ Fuel/ Water/ Air/ Anti Freeze/ Grease.
Construction Tube : NBR Oil Resistant Synthetic Rubber
Reinforcement : High Tensile Synthetic Yarn
Cover : NBR Rubber Resistant to Ozone & Weather
Colour : Inner Tube - Black, Outer Cover - Black
Temp. Range : -40º C to +70º C
Finish : Wrap Finish

Technical Specifications

Size		OD	Maximum Working Pressure		Minimum Burst Pressure
INCH	MM(ID)	MM	PSI	BAR	PSI	BAR
3/4"	19	30	300	20	900	60
1"	25	37	300	20	900	60
